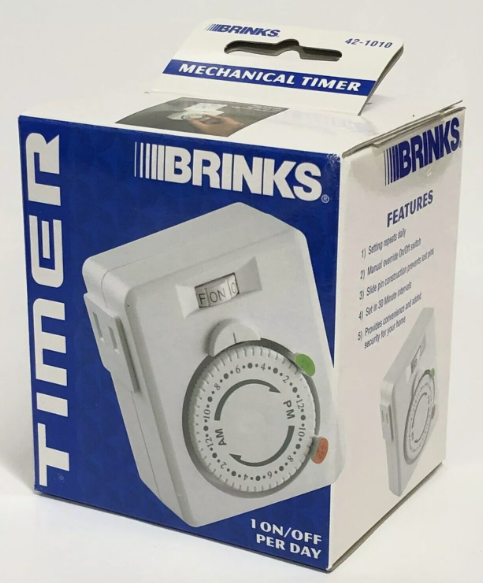

42-1010 Instructions

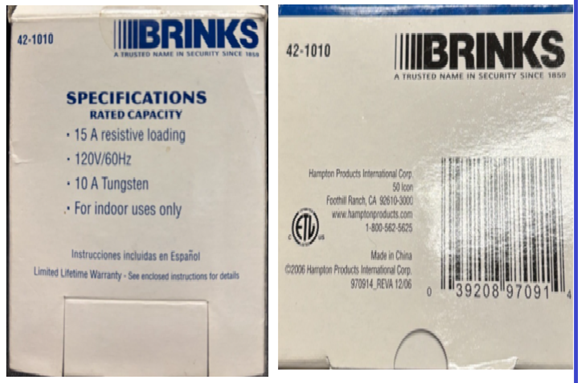

2006 Version: 15 A resistive loading

The timer having following capacities:

• 15A, 1875W resistive (General Purpose)
• 10A, 1250W tungsten (Lighting)

Here is calculation only for 4 hours per day when timer ON

Resistive Timer (1875W)

Energy used by timer=1875 W×4 hours=7500 W/h 

• Energy used by the timer: 7500 W/h or 7.5 kWh per day

Tungsten Light (1250W)

Energy used by light=1250W×4hours=5000 W/h

• Energy used by the tungsten light: 5000 W/h or 5 kWh per day.

 Assuming if $0.12 per kWh, then for 4hours per day cost is $0.90

7.5kWh×0.12USD/kWh=0.90USD

Energy used by timer for general purpose while plugged in ( per hour) is 1.875kWh
Energy used by timer for general purpose without anything plugged ( per hour) is 0.001 to 0.002kWh

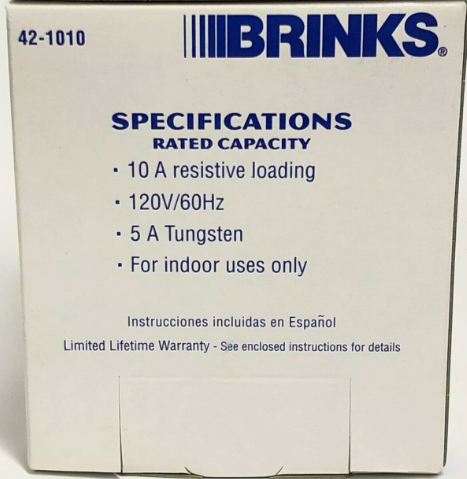

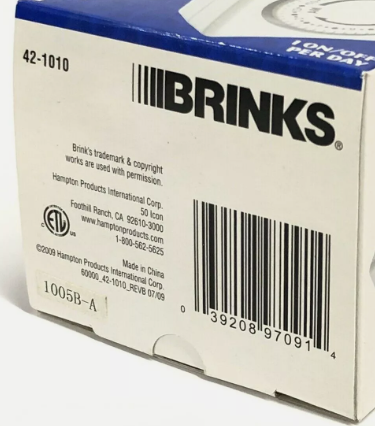

2009 Version: 10 A resistive loading
